MULTI - STEP PROGRAMMING OPTION
This option can be added to all KDS200 series pumps.
This option permits multi-step programs to be entered directly
from the keypad, and eliminates the need for computer programming and the
computer which would normally be required to control complex, multi-step dispenses.
Parameters which can be programmed in each step
1..Time
duration, from one second up to 12 hours
2.Travel direction -- Infuse or withdraw (where available)
3.Beginning flow rate (ml/hr to ml/min range).
4. End flow rate (ml/hr to ml/min range)
5.Pause -- Waits for an external trigger to start
6.Status of two output TTL pins
7.Loop option -- Loops back to any previous step and repeats the intermediate steps. Two separate loops available
8. Set the count in the loop cycle. Steps may be repeated up to 100 times
9. Program stored permanently in memory

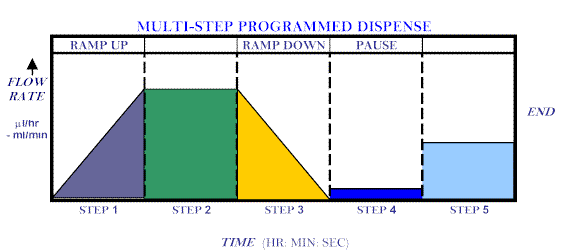

The flow rate automatically ramps linearlly up or down based on the beginning and ending flow rate settings
TTL inputs and outputs permit coordination with other laboratory devices
|
Model
|
100
|
101
|
220/230
|
|
No of Syringe
|
1
|
2
|
4,6,10
|
|
Syringe Size
|
10 ul - 60 ml
|
10 ul - 10 ml
|
10 ul - 140 ml / ea
|
1. RS-232C Cable - Connect with computer but can use Hyperterminal in Windows
- - we use this to test pumps.
