For : Perkin-Elmer Varian GBC Shimadzu HP Hitachi Jasco Unico Unicam Spectronic etc
Fluorimeter Cell
Type

Material
Size mm
Pathlength
Polished Window
Volumn ml

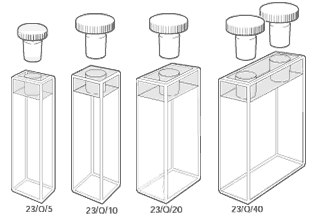

3/Q/5,23/Q/5
Quartz
10*5*45
5 mm
4
1.7

3/Q/10,23/Q/10
Quartz
10*10*45
10 mm
4
3.5
3/Q/20,23/Q/20
Quartz
10*20*45
20 mm
4
7.0

3/Q/40,23/Q/40
Quartz
10*40*45
40 mm
4
14

More Information

Spectrometer cell Standard cell Semi Micro Cell Flrorometer cell Flow clow

螢光光譜儀 石英液槽 四面透光
Type

Material
Size mm
Pathlength
Polished Window
Volumn ml

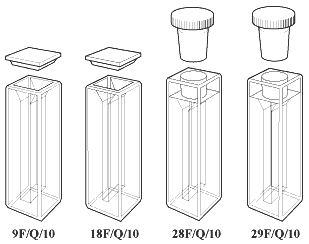

9F/Q/10
Quartz
10*5*45
4 mm
4
1.4

18F/Q/10
Quartz
10*10*45
2 mm
4
0.7
28F/Q/10
Quartz
10*10*45
2 mm
4
0.7

29F/Q/10
Quartz
10*10*45
4 mm
4
1.4


Syringe Pump

Hold 10ul-60ml Syringe

Mini Flow Rate :0.1ul/hr



Fluorimeter Cell for Cryogenics Work
Type

Material
Size mm
Pathlength
Polished Window
Volumn ml

61F/Q/10
Quartz
10*10*48
7 mm
3
2.59

62F/Q/10
Quartz
10*10*48
4.5 mm
5
1.66
63F/Q/10
Quartz
10*10*48
4.5 mm
5
1.66



Type 47,71 Fluorimeter

Flow Through cell

Plaese contract with us

Type 16 Fluorimeter

Sub-Micro Cell

0.010ml,0.012ml,0.040ml,

0.045ml,0.120ml,0.050ml,

0.100ml,0.160 ml

Please contract with us

Type 52,53 Fluorimeter

Dual pathlength cell

0.4ml,0.8ml,1.2ml

1.6ml,2.0ml

Please contract with us



Fluorimeter Cell with Water jacket

Fluorometer Cell with PTFE Cover for Cryogenics Work

MATERIAL: UV Quartz, ES Quartz, IR Quartz
Four Windows and Base Polished.
Working area of windows is 4 mm wide.

L/P OL OW OH IL IW Volume
10 12.5 12.5 45 10 10 3.5 ml


Fluorometer Cell with PTFE Stopper for Cryogenics Work

MATERIAL: UV Quartz, ES Quartz
Four Windows and Base Polished.
Height is w/o Stopper.
Working area of windows is 4 mm wide.

L/P OL OW OH IL IW Volume
10 12.5 12.5 49 10 10 3.5 ml


Maker : NSG / USA

Type - 66
Type - 66FL
