Variable Pathlength Long Path Gas Cell
Variable : 2.2 to 22 Meter or 3.2 to 32 Meter
Cell Volume : 8.5 liter or 11 Liter LaserLine
align Sensitive trace gas down to 10-8 atm
傅利葉轉換紅外線光譜儀 FT-IR
for: Thermo Nicolet Perkin-Elmer Varian(Digilab) Bio-Rad Bucker Bomem Jasco Shimadzu Mattson Horiba Midac

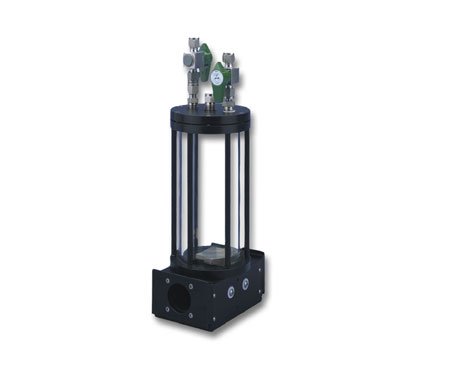

Gas Cell

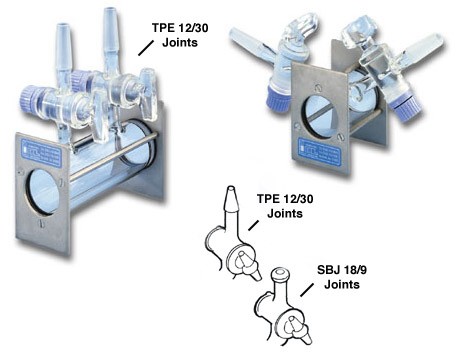

G-2 Gas Cell,5 cm ,10 cm
Windows: 38 * 6 mm Aperature : 32 mm
Pyrex Gas Body
TGA-IR Interface for TA Shimadzu Mettler TGA
Application : Real-Time monitor of evolved gas analysis
Heatable to 300 degree C
100 mm IR beam pathlength
Fixed Gas Cell : 2.4 meter , 4.8 Meter, 10 Meter
2.4 meter Gas cell
Permanently aligned Cell Volume : 120 C.C
Window:37.5 * 4 mm Mirror coated with
ceramic protected silver
PTFE 10 cm Gas Cell
The G-3PTFE is useful for analysis of pure gases and mixtures in which the constituent gases are present in concentrations of 5% or more. The G-3PTFE has a clear aperture of 39mm and uses 47 x 6mm windows. SwagelokR SS valves are standard, but TeflonR valves are optional. A heated version is available. Requires a cell mount
4Runner : 4 Meter
High Temperature : Up to 260 degree C
High Press Gas cell : 10-4 torr to 300 psig
Volume : 0.6 liter 304 stainless Steel Body

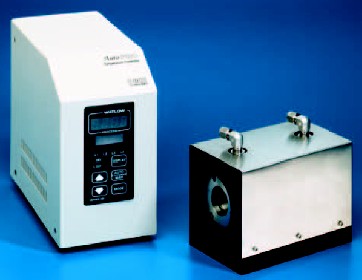

10 cm Heated Gas Cell
10cm vapor gas multi-sampler with sheathed Iron Constantan 304SS type J thermocouple, 110v, 250w heater system, SwagelokR vacuum valve, thermocouple port, injection port heatable to 200 degrees C, 303SS body

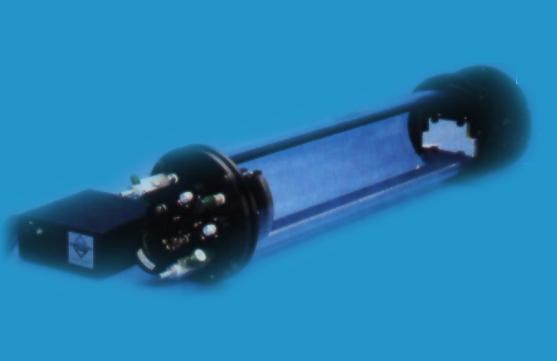

Long Path Mini Gas cell : 1,2 - 6 Meter
Adjustable Long Path Mini Gas Cell, 1.2 to 6.0 meter pathlength with KBr windows
Cell : 14 " length and 3” wide the borosilicate glass pipe is 6 cm in diameter
Gold mirrors
Heated Gas Cell up to 260 degree C
Application : Real-Time monitor of gas analysis
Heatable to 260 degree C
Pressurizable to 100 psi
Stainless steel with 1/8" tube

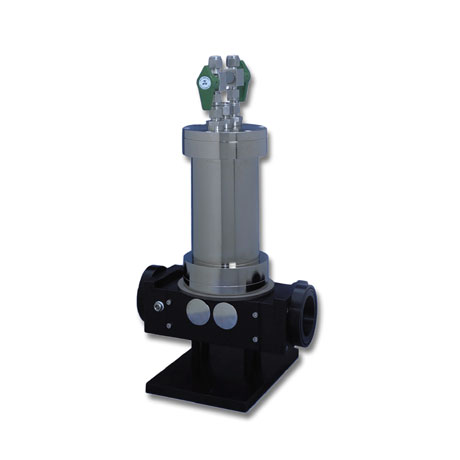

Stainless steel and electroless nickel plated aluminum
1/4" swagelock flow tube
Vacuum up to 45 psi
Can heat up to 200 degree C
Pathlength :
3 Meter (375 ml)
6.4Meter (750 ml)
10 Meter (2 L)
