傅利葉轉換紅外線光譜儀 FT-IR

for: Thermo Nicolet Perkin-Elmer Varian(Digilab) Bio-Rad Bucker Bomem Jasco Shimadzu Mattson Horiba Midac

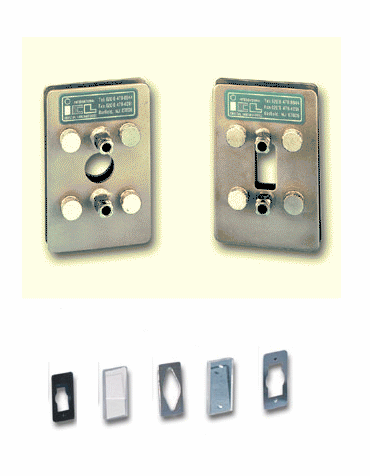

可拆式樣品架

Demountable Liquid Cell

附有6種不同厚度之Telfon Spacer, 使用38.5×19.5×4 mm 鹽片

密閉式樣品架

Sealed Liquid Cell

針對高揮發性液體,及定量分析之用 具有0.015,0.025,0.05,0.1,0.20.5,1.0 mm 厚度

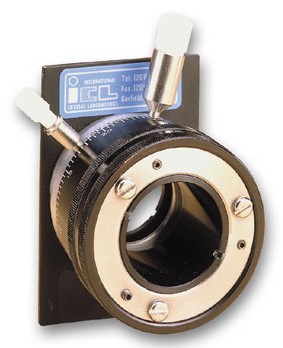

快速可變固定厚度樣品器

Variable Pathlength Cell

直接改變厚度,從0.005 mm-- 5 mm,間隔為0.001 mm,免除拆卸樣品架導至鹽片破損的情形外,並針對不同厚度以作定量使用

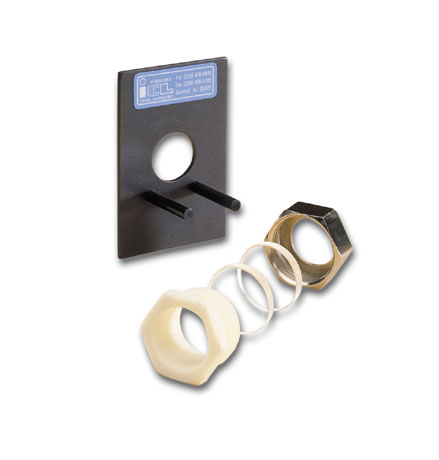

塗抹式樣品架

Press-N-Lock Cell

低揮發性,高黏度液體,定性分析之用 使用25×4 mm 各式鹽片

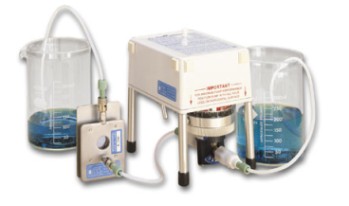

Precision Dispenser & Following Cell

樣品直接經由Pump吸入固定式樣品槽測量 作定性定量之用

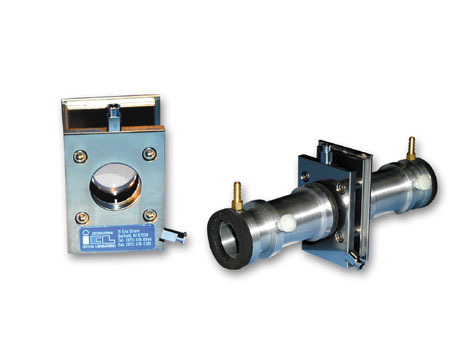

SL-4 Purgeable Sealcell

is now available in both demountable and sealed cell configurations that are purgeable while the cell is in the instrument, by using a Constant Purge? bellows attachment. Unlike conventional sealed cells which have luer fittings on the front plate, the purgeable SL-4P has luer lock filling ports that are mounted on the top and side edge of the 1/4 inch thick front plate of the cell

Fluorolube is a fluorinated hydrocarbon solvent that is ideal for preparation of samples to be run from 4000 to 1360 cm-1 where it is non-absorbing, except at 2321.9 cm-1

Nujol is a high purity mineral oil that is used for the preparation of mull samples in the wavelength range of 1370 cm-1 to the far infrared, with only one absorption band at 720 cm-1

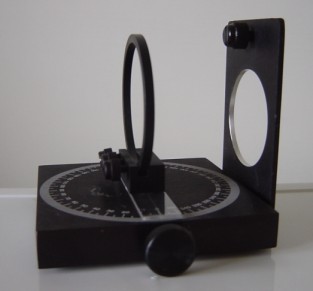

可360度旋轉變更入射角樣品架

Brewster's Angle Sample Holder

Application :

Eliminates interference fringes which offer obscure weak band when used with polarizer

Handy for determining film thickness and refractive index

Compatible with Polarizer

Mount on standard sample slide holder

Include two sample supports.

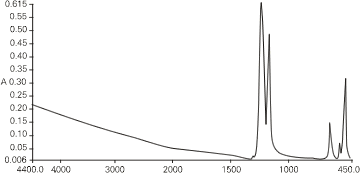

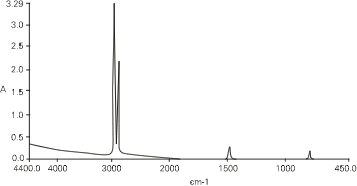

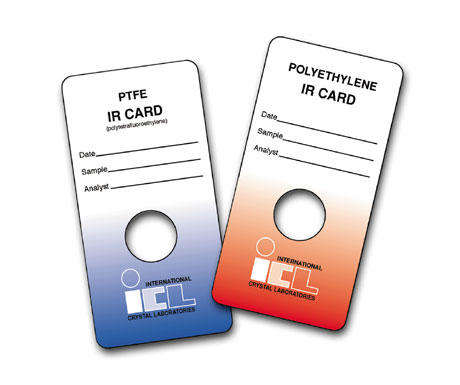

可拋棄式樣品架

樣品直接塗抹於PTFE 或PE 薄膜上作定性分析之用

請參考PE及PTFE之可用範圍以供選擇

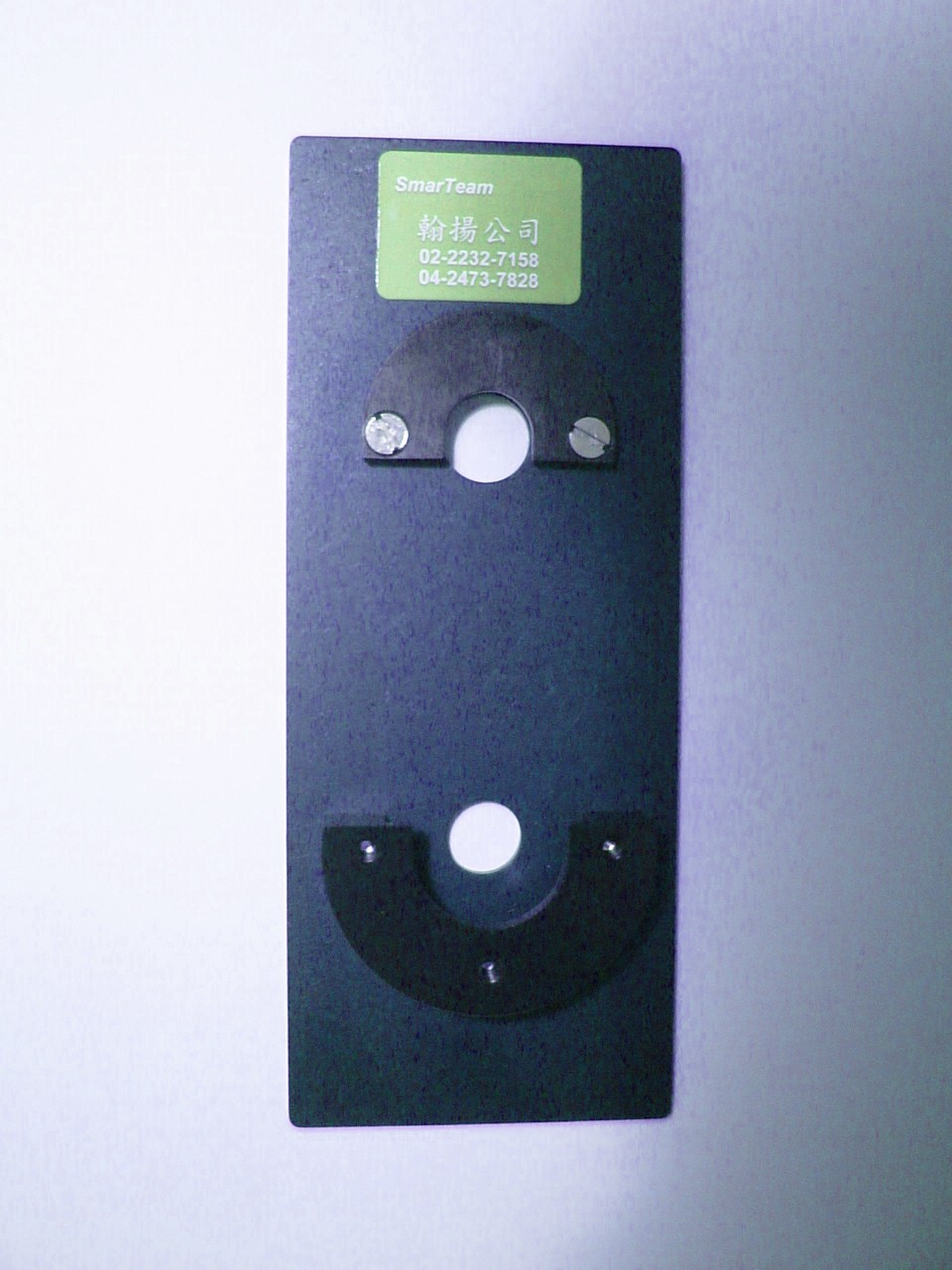

簡易塗抹式樣品架

25*4 mm 鹽片可直接置於樣品架
