for: Thermo Nicolet Perkin-Elmer Varian(Digilab) Bio-Rad Bucker Bomem Jasco Shimadzu Mattson Horiba Midac
New patented E-Z Press? hydraulic lab presses feature a unique lightweight ergonomic design. Both the 12 ton and 20 ton models weigh less than 90 pounds due to ICL’s patented unibody construction. The 12 ton E-Z Press? weighs a mere 51 pounds! The E-Z Press? will handle a variety of lab applications, including pressing KBr pellets for FTIR spectroscopy and briquetting samples for XRF spectroscopy. Ports in the walls of the press frame allow access for vacuum lines and electrical cords to the area between the platens, which enables use of the press with evacuable dies and heated platens. The 20 ton E-Z Press? can also be used for making thin films with ICL’s Constant Thickness Film Maker and Heated Platens. Automated versions are available (see AIR-EZ?) which are driven by pneumatic motors powered by your lab’s compressed air supply.
All E-Z Presses feature built in polycarbonate safety shields with solid brass hardware. There are die centering depressions in the round bottom platens. Each press comes with a standard stainless steel filling disc to flatten the platen (see Fig. 1). The bottom platen of the 12 ton E-Z Press? automatically centers 13mm Macro-Micro die. The bottom platen of the 20 ton E-Z Press? has a 4" diameter depression and optional donut shaped inserts are available to automatically center 13mm, 20mm, 32mm, 35mm and 40mm die sets. Optional extra long handles are also available for both presses for extra leverage.
• Built-in Polycarbonate Safety Shields
• Adjustable Overhead Lead Screw
• Access Ports for Vacuum and Electrical Lines
• Unibody Construction
• Ergonomic Design
• Automatic Die Centering
Constant Thin Film Maker
固體加熱後,可以固定膜厚厚度,定量分析之用 具有15,25,50, 100, 250,500 micro 厚度, Up to 300。C
10 ton, 20 ton
適用於13 mm KBr Die 使用,價格低廉

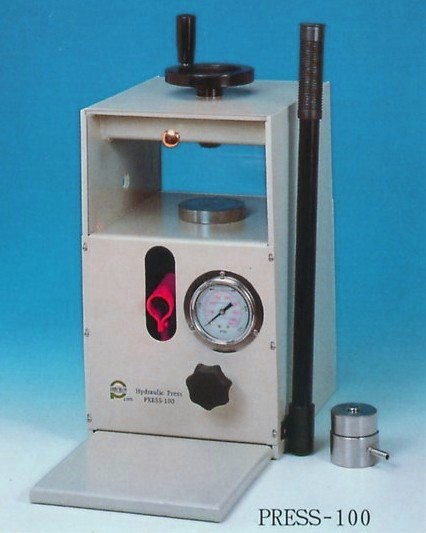

15 Ton 數字顯示油壓機
